DD AUDIO 4-CH AMPLIFIER, IPX67, SX4.1000

Description

• High Output in Compact Size: Delivers a powerful 1000W across four channels in a small footprint.
• Versatile Power Distribution: Capable of powering mids, highs, and a subwoofer with separate channel allocation.
• Robust Build Quality: Features a marine-grade, water-resistant design with heavy-duty aluminum chassis.
• Enhanced Sound Control: Equipped with 12dB/Oct bandpass filters for precise audio customization.
• Efficient Thermal Management: Advanced design ensures effective heat dissipation, maintaining performance even in challenging environments.

This Listing Includes:

• (1) DD Audio SX4.1000 4-Channel Amplifier

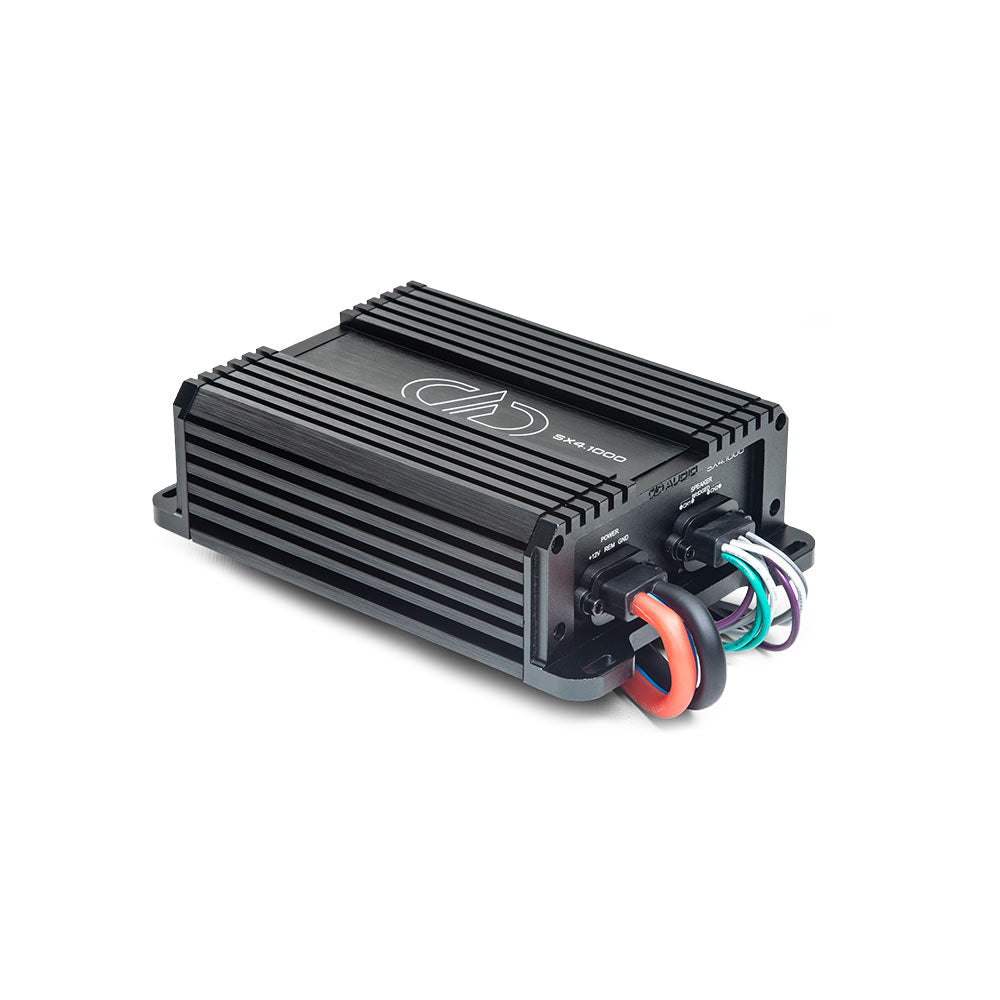

The SX4.1000 from DD Audio is a compact powerhouse, delivering a total of 1000 watts across its four channels within just 32 square inches. This multi-channel amplifier provides a versatile 2Ã250 watts to the mids and highs, along with 500 watts dedicated to the low-end frequencies, making it an ideal choice for rugged duty system designs.

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 4
• Output Channel(s): 4
• Continuous Wattage @4ohm: 4 x 150 Watts
• Continuous Wattage @2ohm: 4 x 250 Watts / 2 x 500 Watts
• Max Current Draw: 100 Amps
• RCA Input Voltage Sensitivity: 10 - 0.4
• High-Level Input Voltage Sensitivity: 10 - 0.4
• RCA Input S/N: > 85
• Damping Factor: > 70
• THD: < 0.1%
• Frequency Response: 10 - 20k Hz
• High Pass Filter: 50 - 5k Hz
• Low-Pass Filter: 50 - 5k Hz
• Power Wire Gauge: 8
• Speaker Wire Gauge: 16
• Dimensions (Inches): 7 x 4.5 x 2
• Dimensions (MM): 178 x 115 x 50
• Item Weight (Lbs.): 2.89

Features:

• IPX67 Rated: Dust Tight and High Water Resistance
• High-Level Inputs and 12dB/Oct High Pass/Low Pass crossovers
• Heavyweight DD Aluminum Chassis
• Aluminum End Panels and Bottom Panel
• 8 AWG Power Terminals
• Marine Grade build for moderate moisture exposure
