DS18

DS-18 NXL-X1200.8D

DS-18 NXL-X1200.8D

$679.99 USD
$799.99 USD $679.99 USD
Sale Sold out

Description

  • Versatile Channels: 8 channels for stereo full-range audio, allowing customization for a complete marine sound experience
  • Waterproof Marvel: IP67 Waterproof Rating ensures protection against water intrusion, making it perfect for marine and powersports adventures

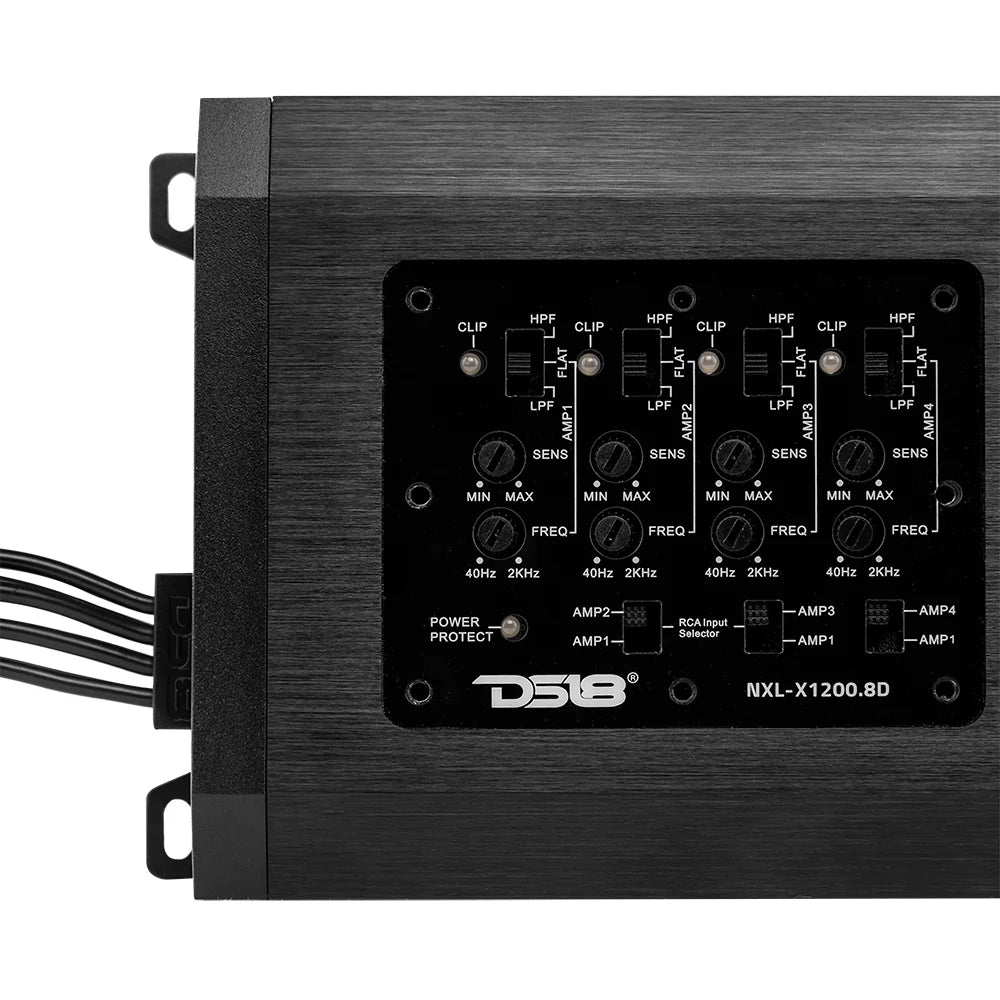

  • Precision Audio Controls: HPF/FULL/LPF controls provide flexibility for audio enthusiasts to fine-tune their marine audio system
  • Durable Build: Built to endure harsh marine conditions with UV, Salt, and Fog protection, ensuring longevity without compromising sound quality
  • Channels Input Selector: Easy selection with 2/4/6/8 channels for a seamless and hassle-free installation process



DS18 8 Channel Full Range Class D 220W x 8CH 2 Ohm Marine Amplifier NXL-X12008D


This Listing Includes:


(1) Full Range 220W x 8 Ch @ 2 Ohms Marine Amplifier


Introducing the DS18 NXL-X1200.8D, an elite marine amplifier with 8 channels delivering 150W RMS each at 4-Ohm. Built to excel in marine environments, it features an IP67 Waterproof Rating, UV, Salt, and Fog protection for durability without compromising sound quality. Enjoy precision audio control with HPF/FULL/LPF settings and a Channels Input Selector for easy installation. The NXL-X1200.8D utilizes cutting-edge digital amplifier design and SMC technology, enhancing audio clarity and providing an immersive sound experience. It delivers powerful performance with 8 x 150W RMS @ 4-Ohm, 8 x 220W RMS @ 2-Ohm, and 4 x 450W RMS @ 1-Ohm, making it the ultimate choice for custom marine builds.


Features:



  • Channels Input Selector: Yes (2/4/6/8 CH)

  • RCA Audio Output: No

  • Waterproof Rating: IP67

  • UV / Salt Fog Protection: Yes

  • Direct Power Harness Design: Yes

  • Quick Connect Plug: Yes

  • Amplifier Class: Digital

  • Amplifier Type: Stereo Full Range

  • Number of Channels: 8

  • Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)

  • Power | Protection | Clip: 4GA Tinned OFC

  • Fuse: 150A

  • LED Indicator: Yes (7-16V)


Specifications:



  • Frequency Response: 10Hz-20Khz

  • Signal to Noise Ratio (1W @ 4?): >80dB

  • Efficiency @ 4 ohm: 81%

  • Input Impedance: 20K OHM

  • Total Harmonic Distortion (THD): <0.04%

  • Input Sensitivity: 200mV-5V

  • Crossover Type: HPF/FULL/LPF

  • Crossover Range: 40Hz-2KHz


Output Power



  • SKU: NXL-X1200.8D

  • Total Watts (Peak): 2800W

  • RMS Power @ 4 ohm: 8 x 150W

  • RMS Power @ 2 ohm: 8 x 220W

  • RMS Power @ 1 ohm: 4 x 450W


Measurements:



  • Overall Length: 14"

  • Overall Width: 4.4"

  • Overall Height: 1.77"
