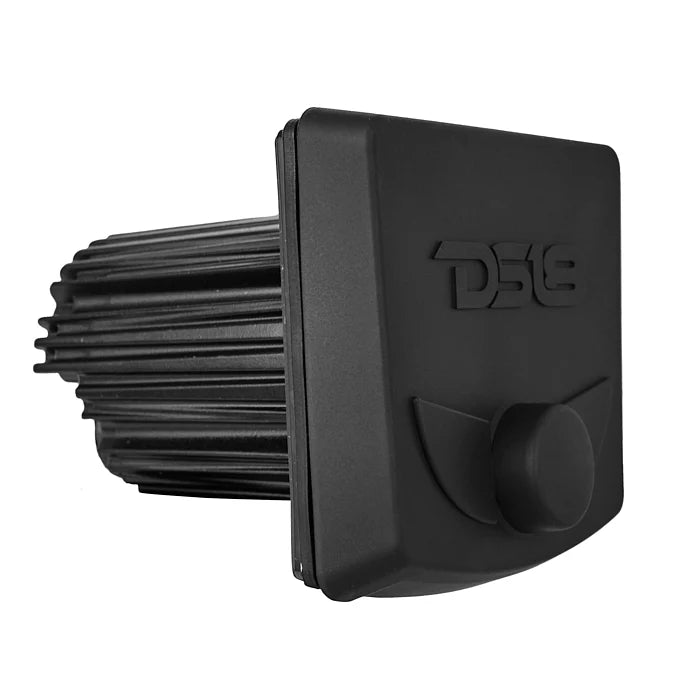

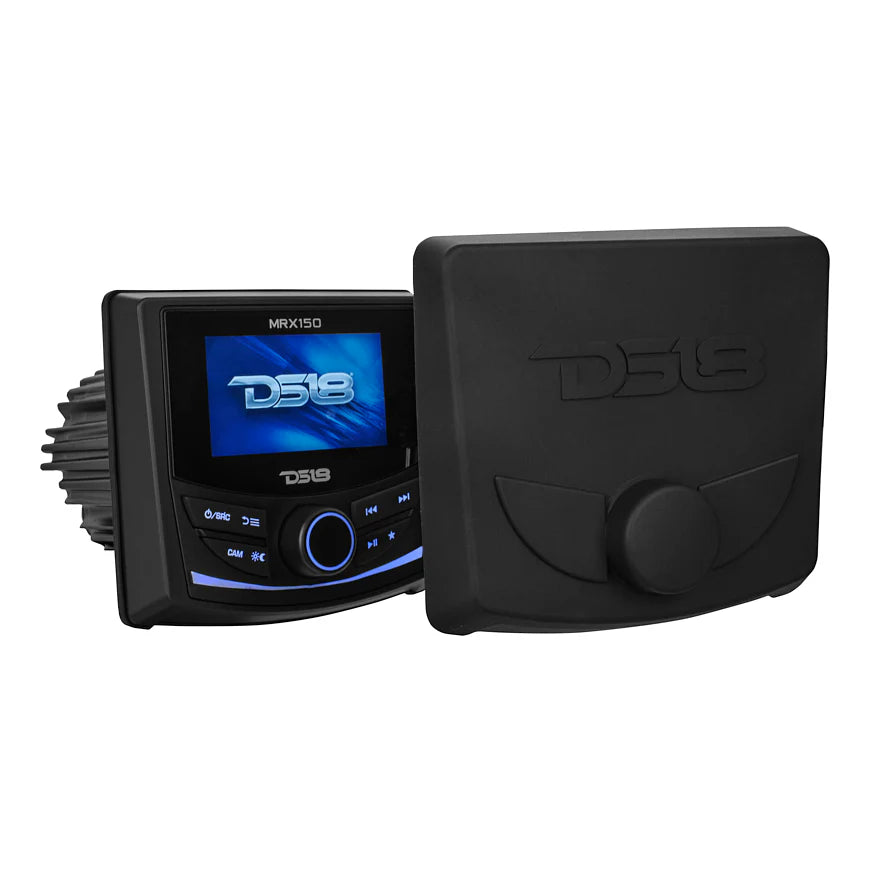

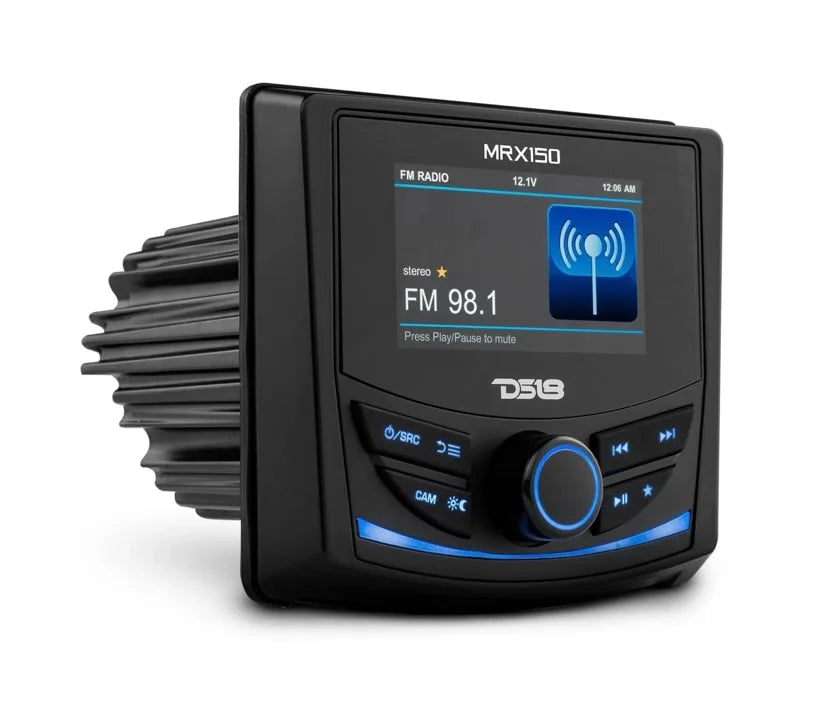

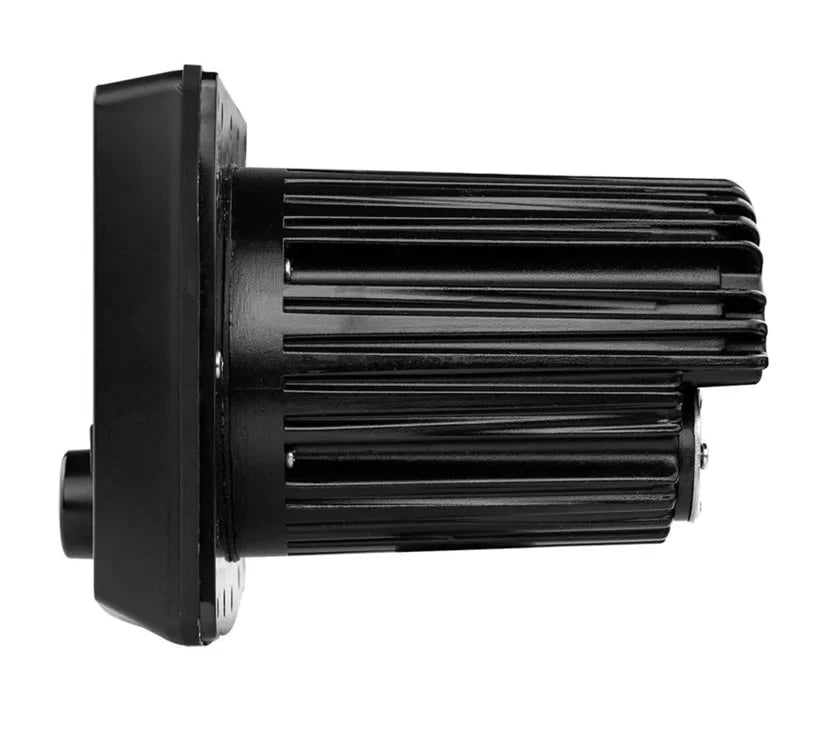

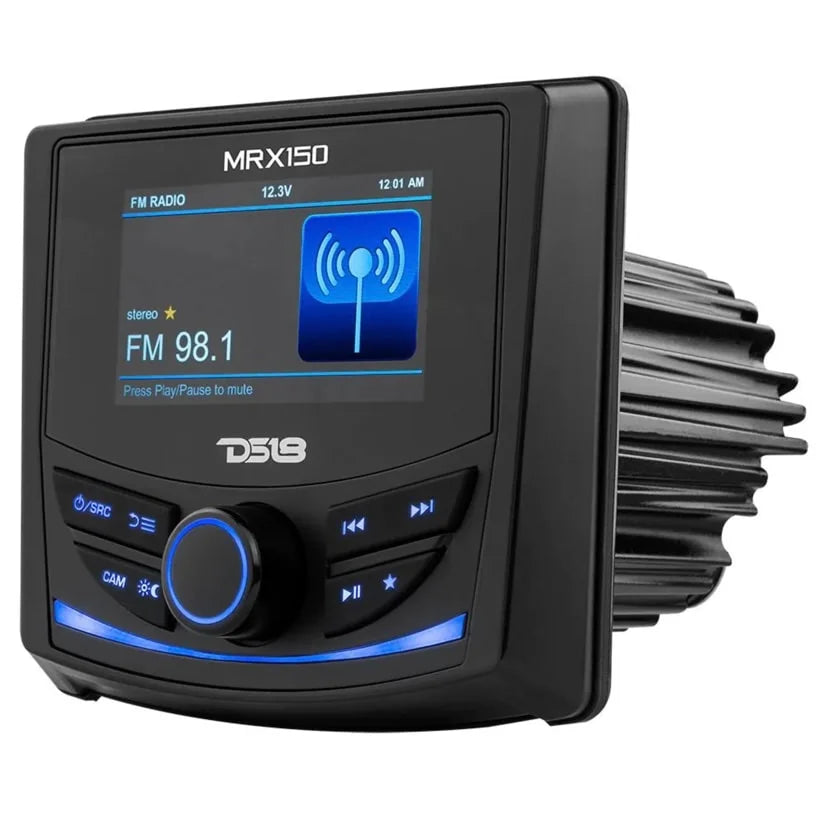

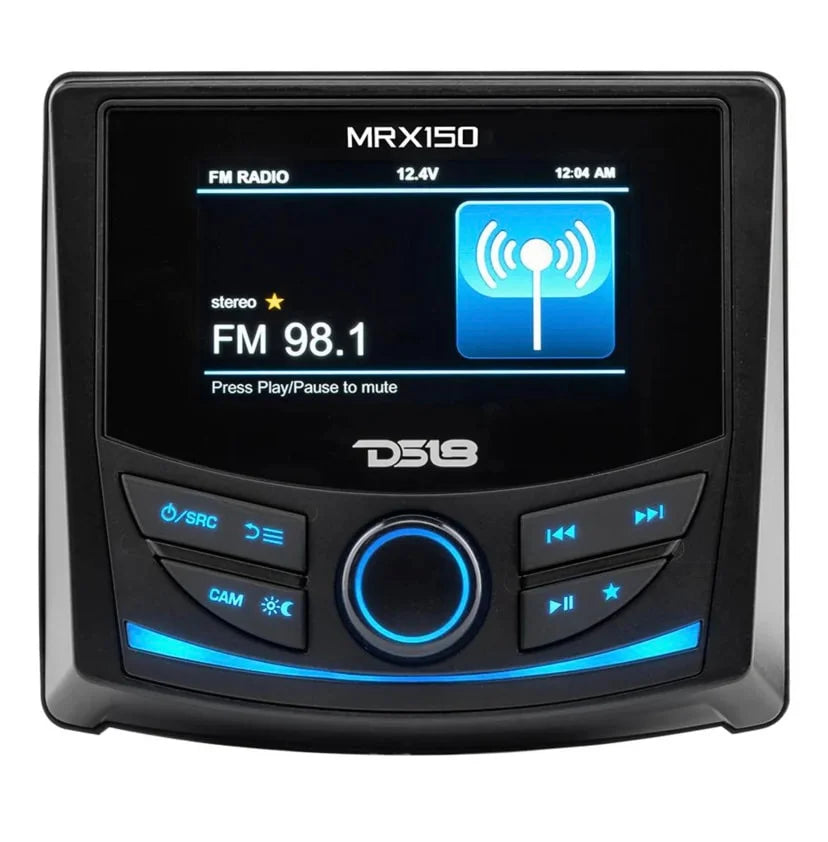

DS18 MRX150 Marine and Powersports Head Unit

Description

• AM/FM/WB Tuner + RDS
• Bluetooth v5.0 for superior audio streaming
• USB Port for Music & 2.1 Amp Charger
• Audio AUX Input
• Speaker Output Power up to 25W x 4CH Continuously and up to 50W x 4CH Musical

The new DS18 MRX150 Marine and Powersports Head Unit is a great upgrade for any and all marine sports applications. Complete with a AM/FM/WB Tuner and 37 presets, Bluetooth v5.0, USB Port, and an Auxilliary Port you can stream your music seemlessly!

Product Features:

•

• AM/FM/WB Tuner + RDS
•

• 37 Radio Presets (18FM / 12AM / 7WB)
•

• Bluetooth v5.0 for superior audio streaming
•

• USB Port for Music & 2.1 Amp Charger
•

• Audio AUX Input
•

• Video Camera Input
•

• Wired Remote Control Input
•

• Screen with Gorilla Glass and OCA Full Bonding
•

• 2 Zones with Independent Level and Tone Control
•

• 2 Band EQ (Bass and Treble)
•

• Subwoofer Output Adjustable (Level and LPF)
•

• All Channels 4 Volts Pre-Amp RCA Output (all Zones)
•

• Speaker Output Power up to 25W x 4CH Continuously and up to 50W x 4CH Musical
•


Technical Information about Unit:

Operating Voltage 10.5 -16 Volts

Current Drain 15 Ampere / (Max)

Low Voltage Warning Alert YES (< 11V)

Waterproof Rating IPX6

UV/Salt Protection YES

Buttons Rubber + RGB Backlit (Blue Color)

DISPLAY

Screen Panel: Gorilla Glass with OCA Full Bonding

Type: TFT LCD with IPS

Backlight: LED

AUDIO

Power Output RMS 4 x 18W @ 4ohm (14.4v) / 4 x 25W @ 2ohm (14.4v)

Max 4 x 50W @ 2ohm (14.4v)

Min Load 2 ohm Stable per Channel

Frequency Response 20Hz to 20Khz

RCA Pre-Out Voltage 4 Volts (14.4v)

Output Impedance 500 ohm

Equalizer 2 Bands (Bass 100Hz 10dB, Treble 10Khz 10dB)

Presets YES (S-Bass / Vocal /Powerful / Clarity)

Subwoofer Control Level (-10 to +10)

Audio Zones 2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L)

Independent Zone Control YES (Level/Tone)

Audio Input L+R RCA (Aux Input)

TUNER

FM Frequency Range 87.5 -107.9 MHz

AM Frequency Range 530 -1710 KHz

Weather Band 162.40 -162.55 MHz

NOAA Weather Band YES Compatible

Tuner Presets 18 FM / 12 AM / 6 WB

Radio Data System YES (AF / TA / NEWS) Selectable

IF 10.7MHz (FM), 450KHz (AM)

Sensitivity 4V (FM), 36dBuV (AM)

Signal to Noise Ratio > 30dB(FM)

Stereo Separation > 25dB

CONNECTIVITY

Bluetooth Version 5.0 + EDR

Audio Streaming A2DP

USB Compatibility v2.0

USB Capacity 64 Gb Max

USB Charge Capacity 2.1 Amp

Audio Files Compatibility MP3, WMA

Remote Control Wired 3.5mm Jack Input (Compatible with MXRC)
