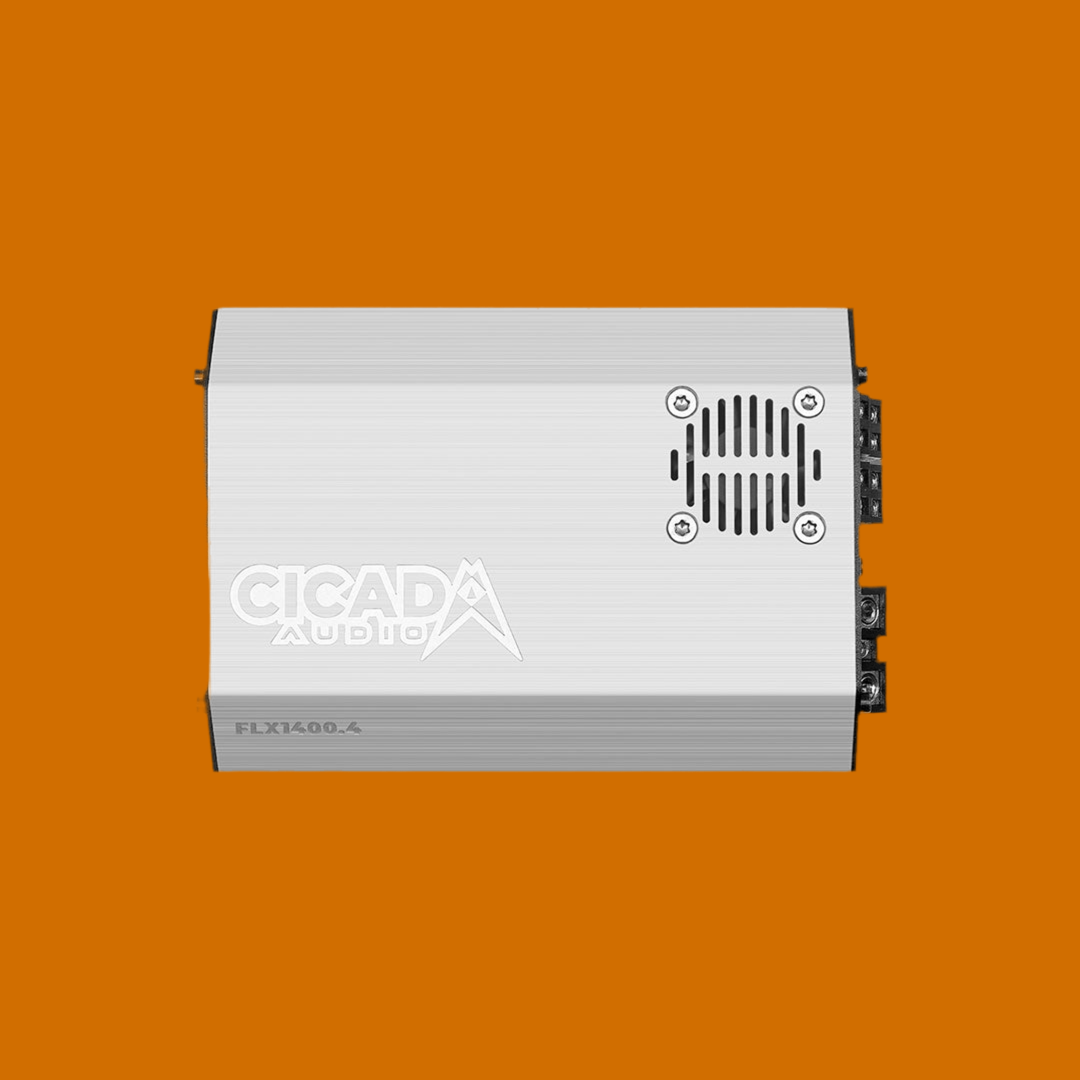

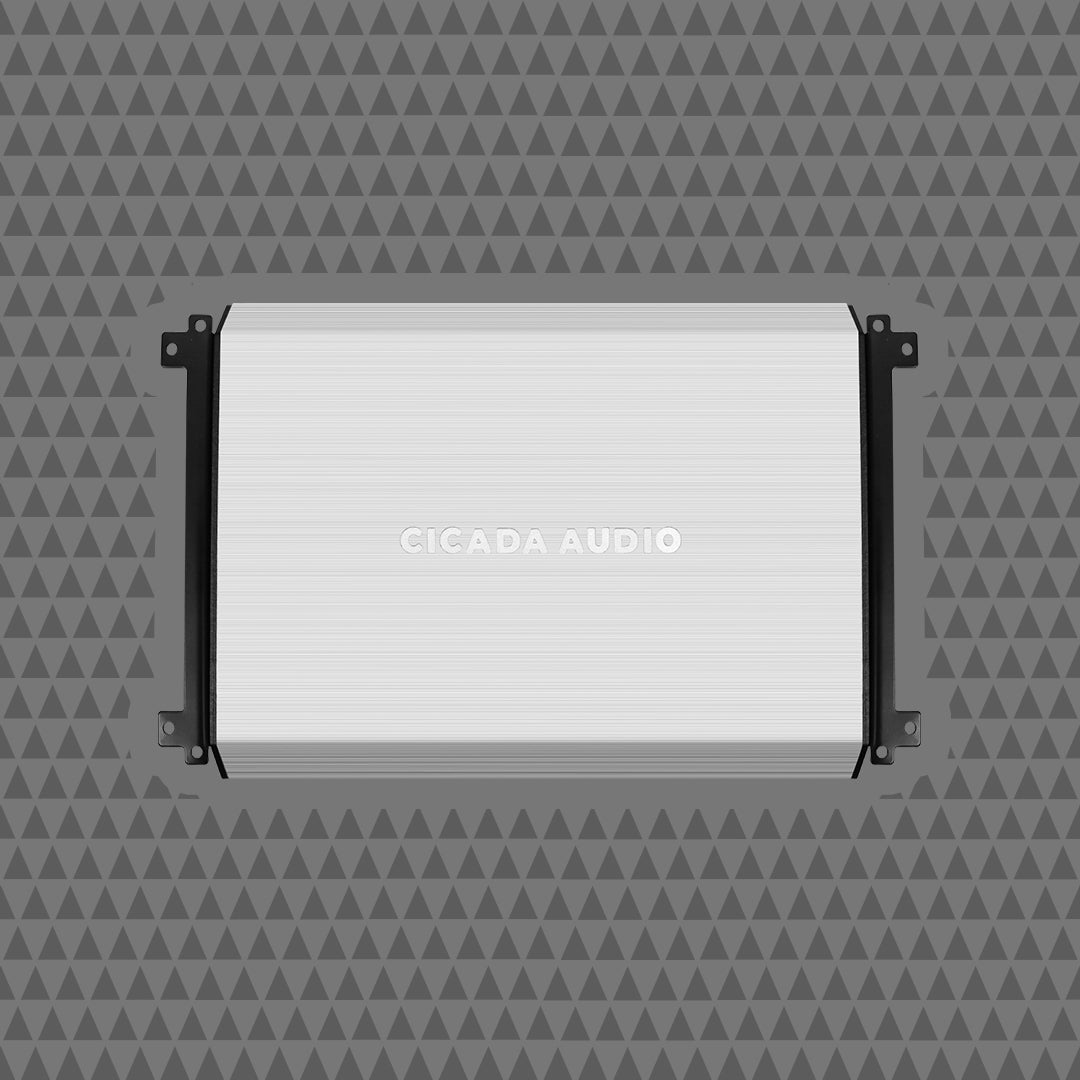

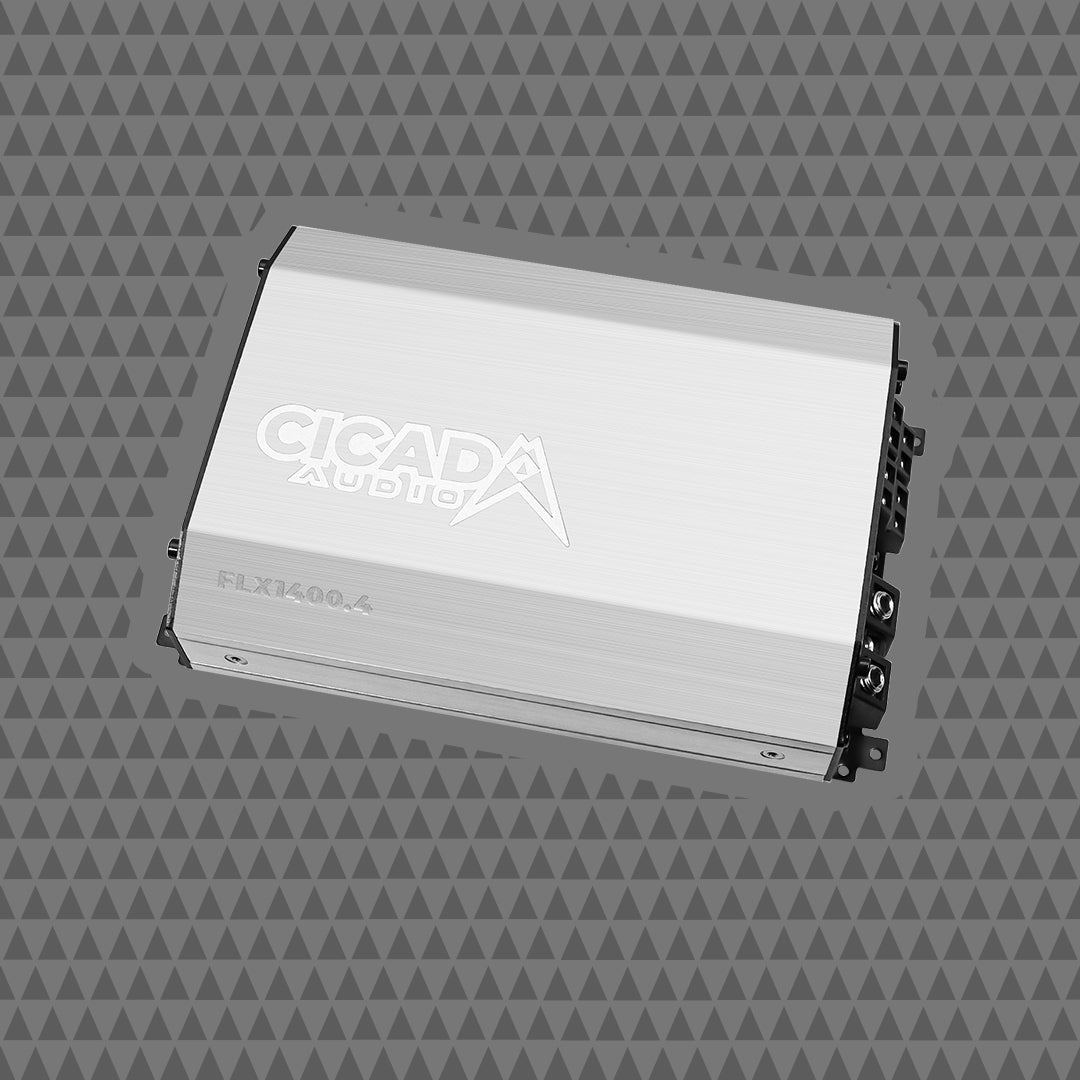

FLX1400.4 350w x 4CH PRO AMPLIFIER

4 CHANNEL POWER AMPLIFIER

Requires 4 AWG Power Wire – HDPG4K

• 4 X 200 WRMS into 4 ohms @ 12.5 Vdc
• 4 X 225 WRMS into 4 ohms @ 14.4 Vdc
• 4 X 300 WRMS into 2 ohms @ 12.5 Vdc
• 4 X 350 WRMS into 2 ohms @ 14.4 Vdc

BRIDGED MONO – 2 CHANNEL

• 2 X 600 WRMS into 4 ohms @ 12.5 Vdc
• 2 X 700 WRMS into 4 ohms @ 14.4 Vdc
• Frequency response – 20-20,000 +/- 3dB THD < 0.5%
• Operating Voltage: 8 V – 16 V
• Current Draw (Music): 50 A
• Current Draw (Max): 220 A
• Recommended Fuse (Music): 120 A
• Total Efficiency: 79%
• Damping Factor: 200
• SNR: 91 dB

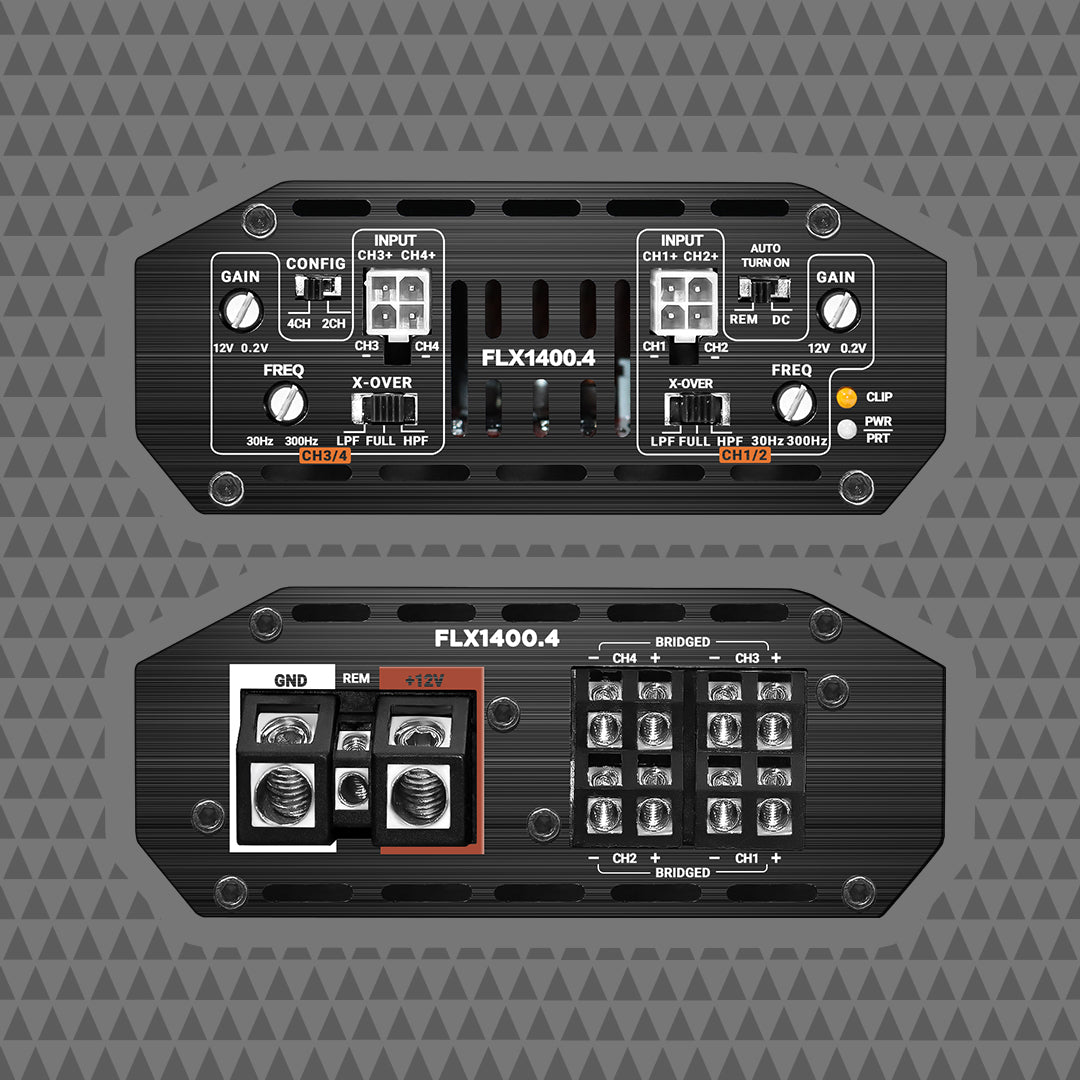

• Crossover LPF/FULL/HPF: 30 TO 300Hz
• Slope:12dB per octave
• Gain: 0.2V – 12 Vac
• Turn-On Configuration: REM/DC
• THD + N (10% Rated Power): 0.1%

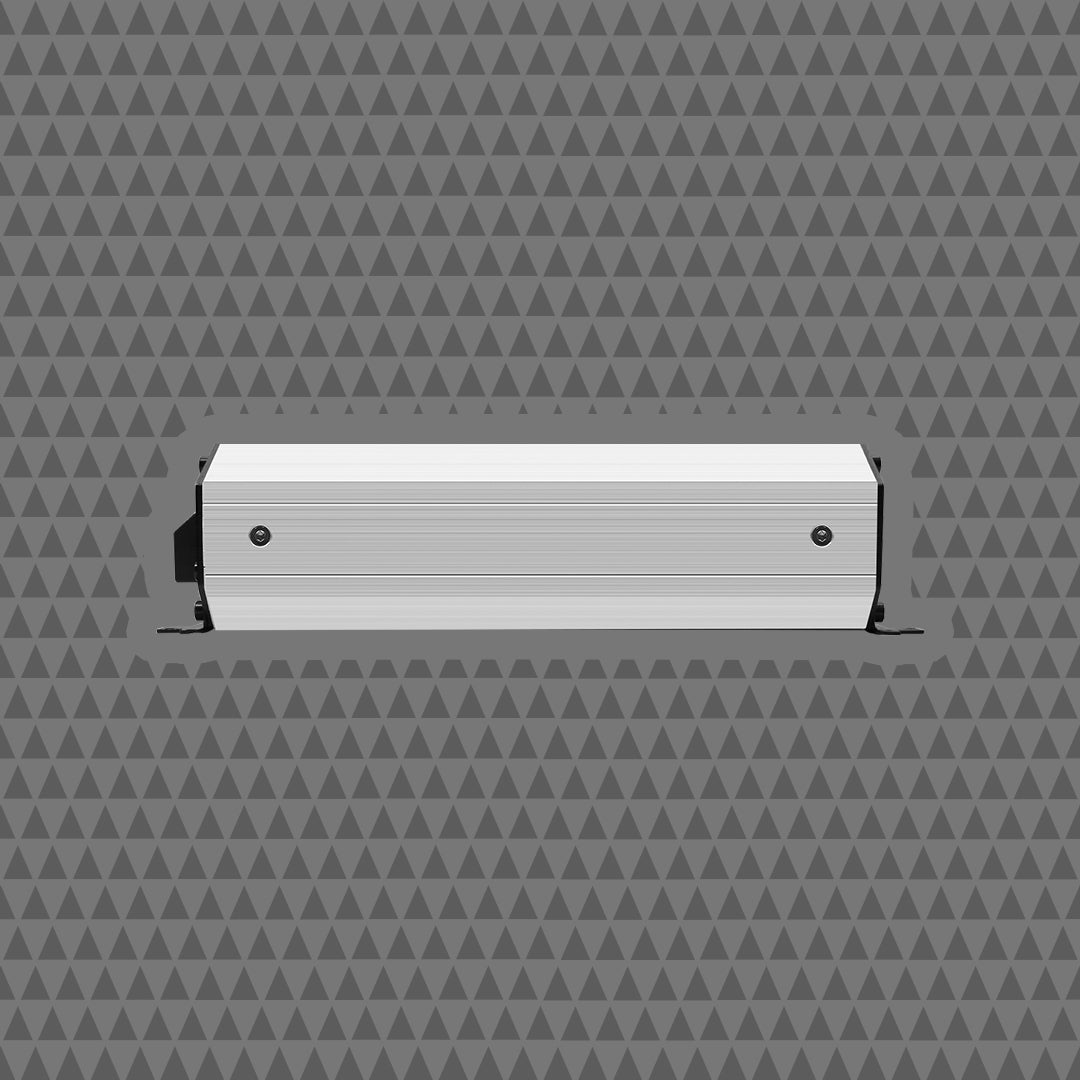

• Product Dimensions (Inches / Millimeters): overall 7.9 x 4.9 x 2.0 in / 200 x 125 x 51 mm chassis only – 6 5/8 x 4.9 x 2.0 in / 168 x 125 x 51 mm
